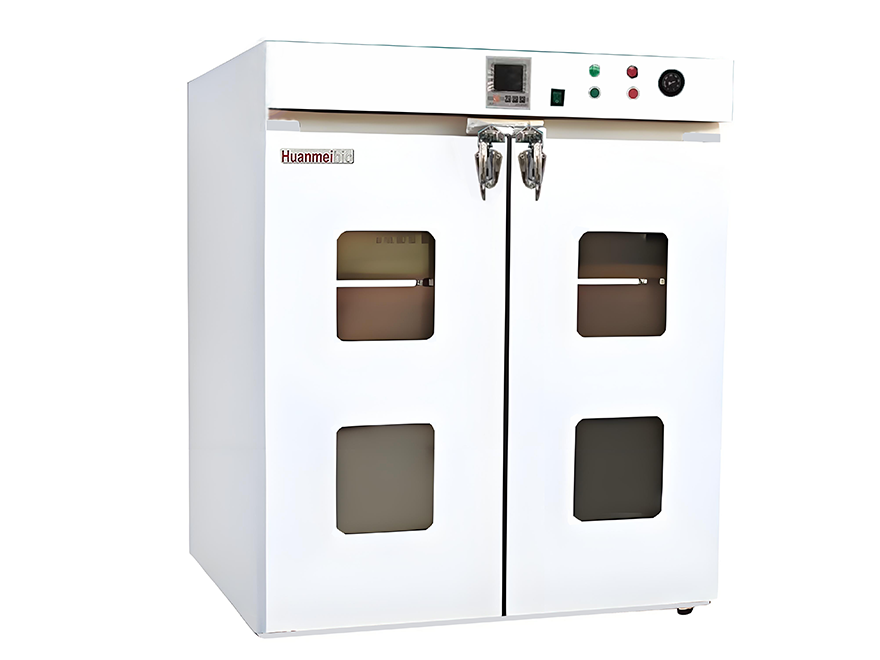

Large blast drying oven
Product Categories： Oven with Fan
Easy to operate, running at fixed values and scheduled times.Adopting a network topology based intelligent PID temperature control method, the parameters can be adaptively tuned.Call recovery function, automatically restores power after power failure.Mechanical forced convection, dual du
Tel：+86-512-58666681
Easy to operate, running at fixed values and scheduled times.
Adopting a network topology based intelligent PID temperature control method, the parameters can be adaptively tuned.
Call recovery function, automatically restores power after power failure.
Mechanical forced convection, dual duct horizontal air supply, good temperature uniformity.
Rounded corner design for easy cleaning. Using Pt100 temperature sensor, the accuracy of thermocouple is precise.
Temperature self diagnostic function.
Internal parameter locking.
Temperature over temperature alarm.
Emergency stop button.
Model | OV1000 | OV1300 | OV1880 | OV3070 |
Volume | 1000L | 1300L | 1880L | 3070L |
Temperature range | Above ambient temperature of 10 ℃ -300 ℃ | |||
Temperature resolution | 0.1℃ | |||
Temperature fluctuation | ±1℃ | |||
Temperature uniformity | ±3℃（at 100℃） | |||
TEMPERATURE DISPLAY | LCD display, touch button lightly | |||
Air convection mode | mechanical convection | |||
Timer | 0-9999 minutes (with timed waiting function) | |||
Exhaust vent | Top exhaust 1 Ø 60mm, side exhaust 2 Ø 30mm | Top exhaust 1 Ø 60mm | Top exhaust 1 Ø 60mm | Top exhaust 1 Ø 60mm |
Working cavity material | stainless steel | |||
call the police | Overtemperature sound and light alarm | |||
layer | 11 | 15 | 15 | 18 |
Partition spacing | 70mm | |||
Partition load-bearing capacity | 30kg | |||
Call recovery | Yes | |||
Internal dimensions (W * D * H) mm | 1000×1000×1000 | 1000×1000×1300 | 1200×1200×1305 | 1600×1200×1600 |
External dimensions (W * D * H) mm | 1040×1200×1400 | 1230×1200×1670 | 1330×1400×1670 | 1750×1400×1990 |
net weight | 260Kg | 350Kg | 480Kg | 800Kg |
Standard number of partitions | 2 | |||
Maximum power | 7kw | 9kw | 12kw | 12kw |
Power supply | AC380V ±10%, 50~60Hz | |||
Ambient Temperature | 5 ～ 40℃ | |||
| Model | Name | Remarks |
| OV.A38 | Division plate | for OV1000 series |
| OV.A39 | Division plate | for OV1300 series |
| OV.A40 | Division plate | for OV1880 serie |
| OV.A41 | Division plate | for OV3070 series |
| OV.A08 | Embedded printer | for LCD models |
| OV.A09 | Program controller | for LCD models |
| OV.A10 | Wireless short message alarm | for LCD models |
| OV.A11 | U disk data storage assembly | for LCD models |
| OV.A12 | RS485 module and remote controller | for LCD models |
