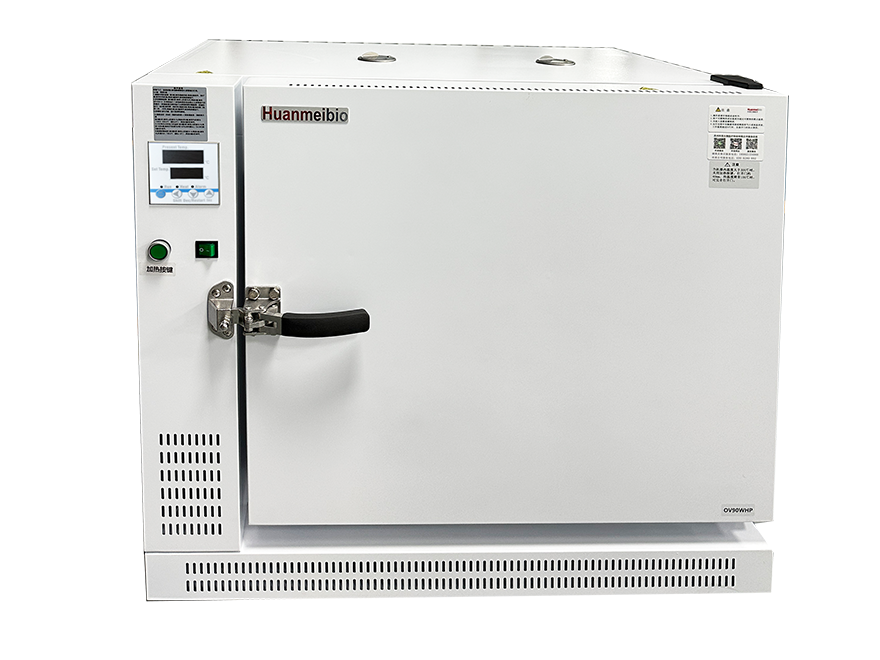

High temperature oven
Product Categories： Oven with Fan
Easy to operate, running at fixed values and scheduled times.Adopting a network topology based intelligent PID temperature control method, the parameters can be adaptively tuned.Call recovery function, automatically restores power after power failure.Mechanical forced convection, lateral wind circul
Tel：+86-512-58666681
Easy to operate, running at fixed values and scheduled times.
Adopting a network topology based intelligent PID temperature control method, the parameters can be adaptively tuned.
Call recovery function, automatically restores power after power failure.
Mechanical forced convection, lateral wind circulation, and good temperature uniformity.
Rounded corner design for easy cleaning.
Using Pt100 temperature sensor, the accuracy of thermocouple is precise.
Can operate for a long time at 500 ℃
Anti scald handle, safe operation.
Temperature self diagnostic function.
Internal parameter locking. Temperature over temperature alarm.
Model | OV50WH | OV90WH | OV150WH | OV210WH |
Volume | 50L | 90L | 150L | 210L |
temperature range | Above ambient temperature of 20 ℃ -500 ℃ | |||
Temperature resolution | 0.1℃ | |||
Temperature fluctuation | ±0.5℃ | |||
Temperature uniformity | ±2.5℃(@100℃) | |||
TEMPERATURE DISPLAY | LED | |||
Air convection mode | mechanical convection | |||
Timer | 0-9999 minutes | |||
Exhaust vent | Top exhaust Ø 35mm | |||
Working cavity material | SUS304 stainless steel inner liner | |||
Casing | Cold rolled steel plate electrostatic spraying | |||
heater | 304 stainless steel heating tube | |||
Call the police | Overtemperature sound and light alarm | |||
Temperature sensor | Pt100 | |||
Layer | 4 | 6 | 7 | 7 |
Partition spacing | 45mm | |||
Partition load-bearing capacity | 15kg | |||
Call recovery | YES | |||
Internal dimensions (W * D * H) mm | 350×357×400 | 450×450×450 | 500×500×600 | 570×620×595 |
External dimensions (W * D * H) mm | 781×529×645 | 881×629×789 | 931×679×939 | 1001×799×934 |
Net weight | 44Kg | 60Kg | 80Kg | 110Kg |
Standard number of partitions | 2块 | |||
Maximum power | 3.6kw | 4.5kw | 4.8kw | 5.1kw |
Power supply | AC380V ±10%, 50~60Hz | |||
Ambient Temperature | 5 ～ 40℃ | |||
| Model | Name | Remarks |
| OV.A42 | Division plate | for OV50WH series |
| OV.A43 | Division plate | for OV90WH series |
| OV.A44 | Division plate | for OV150WH serie |
| OV.A45 | Division plate | for OV210WH series |
