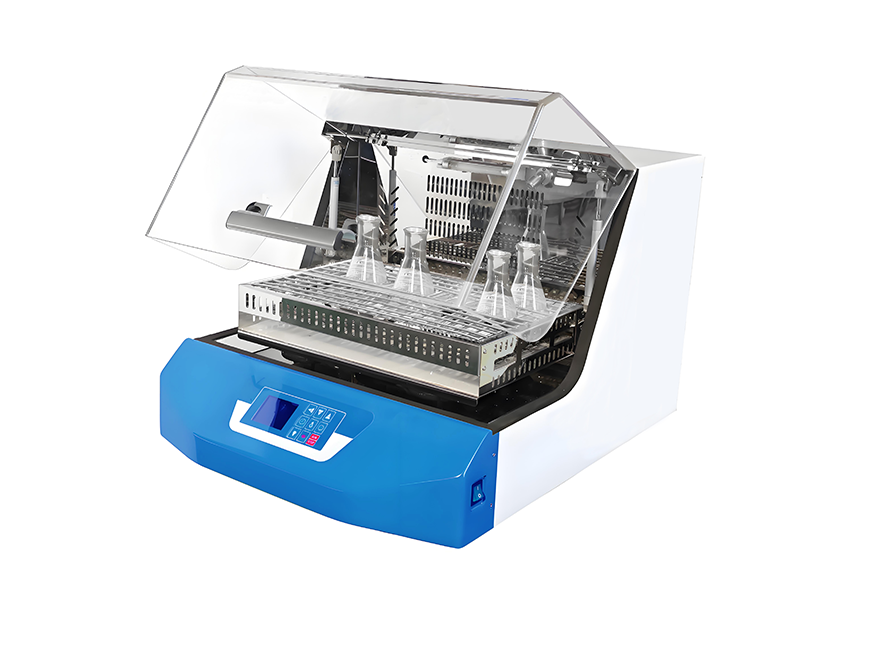

Small oscillation incubator
Product Categories： Small oscillation incubator
Accurate temperature control, using network topology based intelligent PID temperature control method, can adaptively tune parameters.Call to restore normal operation function.Timer function.Internal parameter locking function of the button.Temperature self diagno
Tel：+86-512-58666681
Accurate temperature control, using network topology based intelligent PID temperature control method, can adaptively tune parameters.
Call to restore normal operation function.
Timer function.
Internal parameter locking function of the button.
Temperature self diagnostic function.
Unique air duct with gentle breeze circulation and good temperature uniformity. Grand observation window, convenient for observing samples.
DC brushless motor with high speed accuracy and long service life.
Automatically switch the speed direction.
UV lamp, lid interlock function. Open the lid and automatically cut off the ultraviolet lamp.
The waterproof design at the bottom of the studio ensures that any spilled solution will not affect the operation of the machine.
All parameters are displayed on the same screen, including temperature, speed, and working time.
The machine casing is designed with vertical and rounded corners for easy cleaning. Overtemperature sound and light alarm function.
Standard spring frame.
Name | Small single temperature oscillation incubator | Small full temperature oscillation incubator |
Model | ST1 | ST2R |
Temperature range | RT+5℃ - 65℃ | 4℃~65℃ |
Temperature uniformity | ±1℃ | |
Temperature fluctuation | ±0.1℃ | |
Temperature resolution | 0.1℃ | |
Effective volume | 50L | 70L |
Speed control range | 30~300RPM | |
amplitude | Φ20mm | |
Speed control accuracy | 1RPM | |
Maximum power | 600w | 800w |
Working cavity material | Mirror stainless steel | |
Casing | ABS | |
Observation window | Imported resin three-axis horizontal | |
Drive mode | Mirror stainless steel | |
refrigeration system | NO | Yes |
refrigerant | NO | R134a |
Wind circulation direction | level | |
Display | LCD | |
Automatic call recovery | Yes | |
Timing function | 0~9999minutes | |
Power supply | AC220V ±10%, 50~60Hz | |
Alarm protection | Overtemperature alarm, power-off protection, locked rotor protection, door control function | |
Net weight | 45kg | 65kg |
Internal dimensions (W * D * H) | 455*380*290mm 500*640*480mm | 500*640*480mm 600*770*500mm |
External dimensions (W * D * H) | 380*320mm | 480*320mm |
Spring frame (standard) | 100ml*16 or 250ml*9or 500ml*5or 1000ml*4 | 100ml*24or 250ml*12or 500ml*6or 1000ml*6 |
Spring holder capacity (ml/piece) | 45kg | 65kg |
Spring frame load-bearing capacity | 10kg/layer | 15kg/layer |
Ambient Temperature | 5~40℃ | 5~30℃ |
| Model | Name | Remarks |
| ST.A01 | Spring support | SUS304 |
| ST.A02 | Spring support | SUS304 |
