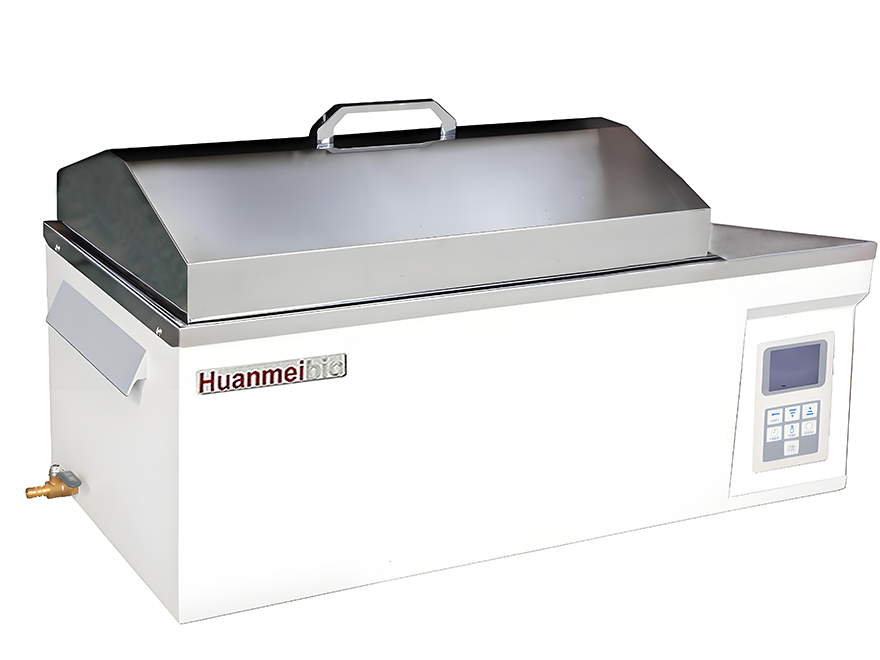

Water bath shaker
Product Categories： Water bath shaker
Wide temperature range, up to 100 ℃.Accurate temperature control, using network topology based intelligent PID temperature control method, can adaptively tune parameters.Low water level reminder and protection to prevent safety risks caused by dry burning.It has calibration function. The temperatur
Tel：+86-512-58666681
Wide temperature range, up to 100 ℃.
Accurate temperature control, using network topology based intelligent PID temperature control method, can adaptively tune parameters.
Low water level reminder and protection to prevent safety risks caused by dry burning.
It has calibration function. The temperature is accurate for both high and low temperatures.
Call to restore normal operation function.
It has functions of fixed value operation and timed operation.
Internal parameter locking function of the button.
It can display measured values, set values, and machine operating status, as well as display set time and remaining time.
Stainless steel integrated inner liner with rounded corners for easy cleaning.
Overtemperature sound and light alarm function.
Light start and slow stop design to prevent liquid from splashing out of the bottle.
Model | SW30 |
Temperature range | AT+5℃~100℃ |
Temperature uniformity | ± 0.2℃ |
Temperature fluctuation | ± 0.1℃ |
Display resolution | 0.1℃ |
Effective volume | 30L |
Speed control range | 20~180RPM |
amplitude | Φ16mm（Φ24mm可选） |
Speed control accuracy | ±1RPM |
maximum power | 1500w |
Material of sink | 304 mirror stainless steel |
casing | Cold rolled steel plate electrostatic spraying |
Upper cover | Mirror stainless steel |
Drive mode | Crankshaft, double connecting rod, four roller |
Automatic call recovery | Yes |
Timing function | 0-9999min. |
display | LCD |
power supply | AC220V ±10%, 50~60Hz |
Alarm protection | Overheating protection, low water level protection, sound and light alarm |
drain outlet | Yes |
net weight | 20kg |
Internal dimensions (W * D * H) | 500*310*200mm |
External dimensions (W * D * H) | 828*360*425mm |
Spring frame (W * D) standard | 395*250mm |
Spring holder capacity (conical bottle) | 100ml*12或250ml*8或500ml*6 |
Spring frame load-bearing capacity | 5kg/layer |
Test tube rack (W * D * H) comes standard | 382*250*90mm |
Test tube rack capacity (test tubes) | 19ml*28，16ml*56，14ml*56 |
| Model | Name | Remarks |
| WB.A16 | Test tube rack | SUS304 |
| WB.A17 | Spring support | SUS304 |
