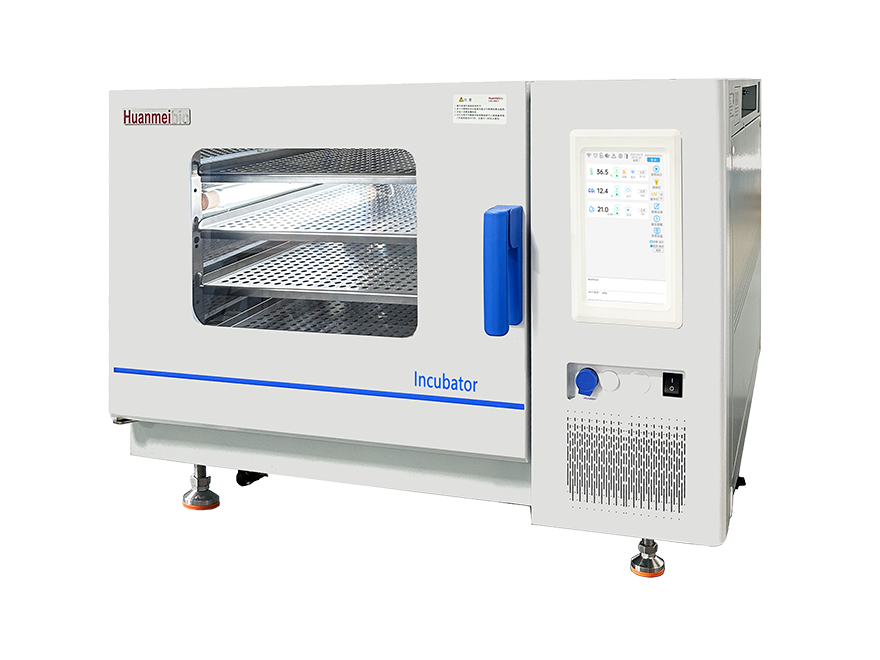

Stackable precision light incubator
Product Categories： Illuminating incubator
Can be stacked to 3 layers, saving indoor space. Adopting a network topology based intelligent PID. Hig hquality CFC compressor. Frequency conversion compressor.Timing to start or stop or UV timing function.More 50% energy-saving than traditional unit.Three-level users
Tel：+86-512-58666681

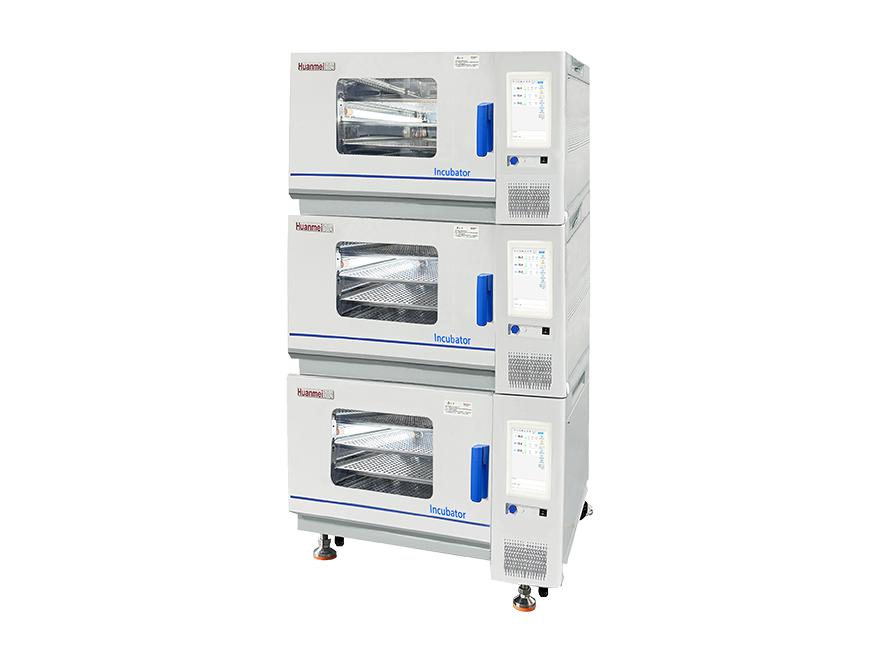

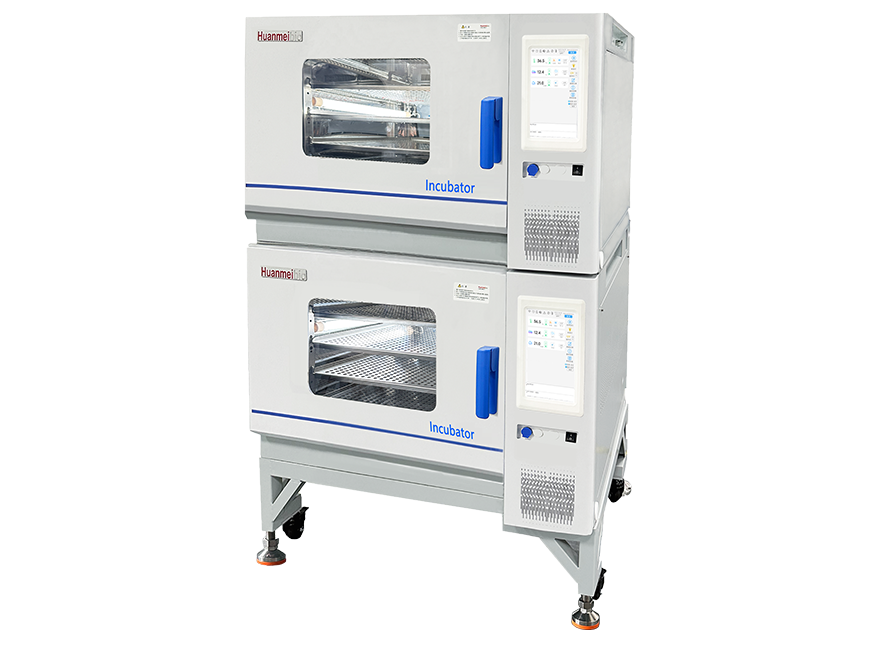

Can be stacked to 3 layers, saving indoor space.
Adopting a network topology based intelligent PID.
Hig hquality CFC compressor. Frequency conversion compressor.
Timing to start or stop or UV timing function.
More 50% energy-saving than traditional unit.
Three-level users management, complies with 21 CFR-part11. Meets GMP requirements.
The chamber is made of SUS304 stainless steel for corrosion preven tion.
The chamber is waterproof, rounded design for easy cleaning.
Equiped with two lights and ultraviolet lights on two sides.
Data export by the USB port.
Call recovery function after the power failure recovery.
Continuously record data for 5 years (stored per minute).
The screen can display temperature, other curve functions.
Overtemperature alarm.
10 inch touch screen display, all parameters display are clear at a glance.
Model | Layers | Chamber | Net weight | Dimensions (length x depth x height)mm | Partition |
LS200RE | 1 unit | 200L | 161Kg | 977×（796+handle 59）×680 | Single layer: standard number of partions/Maximum partions available 2/9 |
LS200RBE | 2 unit | 200L | 322Kg | 977×（796+handle 59）×1280 | |
LS200RCE | 3 unit | 200L | 486 Kg | 977×（796+handle 59）×1880 | |
LS250RE | 1 unit | 250L | 181 Kg | 977×（796+handle 59）×800 | Single layer: standard number of partions/Maximum partions available 2/12 |
LS250RBE | 2 unit | 250L | 362 Kg | 977×（796+handle 59）×1520 | |
LS250RCE | 3 unit | 250L | 543 Kg | 977×（796+handle 59）×2240 |
Product Name | Stackable precision light incubator |
Stacking layers | 1 layer /2 layers / 3 layers |
Temp. range | 15 ℃ below ambient temperature (minimum 0 ℃) - 70 ℃ |
Temp. resolution | 0.1℃ |
Temp. fluctuation | ±0.1℃ |
Temp. uniformity | ≤± 0.2 ℃ (@ 37 ℃, 9 points temperature test) |
Temp. recovery after 30S open-door | ≤5min (@37℃) |
| Compressor | Non-CFC compressor |
| Sterilization | UV lights on both sides |
| Lighting | LED fluorescent lights on both sides |
| Display mode | 10 inch touch screen |
Programing segments count | 40 paragraphs |
Door open | Right side open |
Curve display type | Temperature curve |
Data storage time | Recording every minute |
Storage time interval | Adjustable (minimum 1 minute) |
Data storage content | Running time, temperature parameters, operating status and other operating parameters, and the USB flash drive can be exported |
Noise level | ≤55dB |
Internal dim.(W * D * H) | 560*696*522mm（200Lmodel）/560*696*642mm（250Lmodel） |
Partition working size | 492*508mm |
Partition load-bearing capacity | 15kg |
Partition layer height | 45mm |
Maximum power | 900w |
Internal waterproof flushing | yes |
Timer function | UV reservation, timing, and reminder functions for reminders log records, audit trails, and three-level permission functions |
Audit tracking function Cavity volume | 200L/250L |
Power Supply | AC220V ±10%, 50/60Hz |
Cavity cleanlevel | ISO5 level (Class100) (optional) |
Model | Name | Remarks |
S.A61 | White light illumination accessory | Suitable for all models |
S.A02 | WIFI remote controller accessories | Suitable for all models |
S.A37 | Sunlight&UV lamp group | Suitable for all models |
S.A38 | Fluorescent lamp module | Suitable for all models |
S.A39 | UV lamp module | Suitable for all models |
S.A70 | Bracket 280 | Suitable for all models |
S.A72 | Light avoidance module | Suitable for all models |
S.A48 | Embedded printer | Suitable for all models |
S.A49 | 8-channel SMS/phone alarm | Suitable for all models |
S.A54 | Electric door lock | Suitable for all models |
S.A87 | Computer monitoring software | Suitable for all models |
S.A88 | 3Q verification | Suitable for all models |
S.A100 | Human body sensing module | Suitable for stackable temperature control models |
IN.A16 | Partitions | Suitable for all models |
IN.A17 | Clean ISO5 level (Class100) components | Suitable for all models |
