Low speed bench type refrigerated centrifuge
Product Categories: Bench Centrifuge
Low speed bench type refrigerated centrifuge is a cold and hot dual-purpose bench type centrifuge, which is widely used in molecular biology research, industrial and mining enterprises, biological enterprises, medical and health laboratories for routine analysis, such as genetic research, blood analysis, protein analysis, PCR product research, etc.
Tel:+86-512-58666681
Adopt advanced network topology intelligent PID control method to control temperature and speed accurately.
knob setting parameters, fast and reliable.
Technical know-how of noise reduction and vibration reduction to ensure low noise and vibration of the machine.
Instant centrifugation function, press to realize rapid centrifugation.
Fast cooling function, which can quickly cool to 4 ° C.
5 inch color LCD screen, parameters at a glance.
Special swivel material, resistant to various chemical corrosion and high temperature disinfection.
The stainless steel cavity is coated with Teflon, which is corrosion-resistant and easy to clean.
Parameter memory function, automatically memorize the last experimental setting value.
Two timing methods can be selected, start timing and timing when the speed is stable.
Automatic electronic door lock, convenient for taking and placing samples.
After centrifugation, the door opens automatically to prevent the sample from overheating, which is convenient for taking and placing samples.
Use variable frequency motor, no carbon brush, maintenance free, long service life.
Unique air duct for heat dissipation to avoid excessive temperature rise of rotating head.
Rotor automatic identification, automatic imbalance detection.
10 kinds of operation parameters can be set, and the first five are placed on the panel for convenient and rapid call.
Imported refrigeration compressor has low noise and long service life.
The interface switches between Chinese and English.
Safety protection: door opening protection, overspeed alarm, overvoltage protection, overcurrent protection, imbalance detection alarm, operation end or error sound prompt and code display.
Model | BC06BR |
Capacity | 4 x 100ml or 8 x 50ml or 32 x 10ml /15ml or 36 × 8ml or 72 × 3/5/7ml or 4 × two × 96 well microplate or 2 × two × 96 hole deep hole plate |
Speed | 200~6000rpm/ step 10rpm |
Max. RCF | 5150 x g , step10 x g |
Temperature range | -20 ° C to +40 ° C in steps of 0.1 ° C |
Acceleration and deceleration time | Acceleration≤30 s, deceleratio≤25 s |
Speed up and down procedure | 9 speed increases, 10 speed decreases, and position 0 is common speed. |
Timer | 1 ~ 59 seconds / 1 ~ 59 minutes / 1 ~ 99 hours |
Noise level | ≤65dB(A) |
Standard match on centrifuge rotor | BC.A08 |
Display | LCD |
Dimensions (W×D×H) | 562×678×380mm |
Max. power | 650 W |
Power Supply | AC220V ±10%, 50~60Hz |
Net weight (without rotor) | 77Kg |
Model | Name | Max. Speed r/minn | No. Rotor | Max. RCF | Remarks |

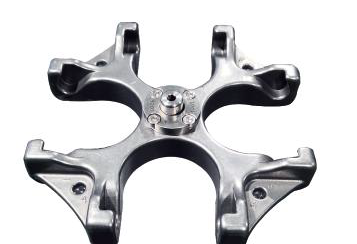

BC.A08 | Rotor | 5000 | 4980 | ||

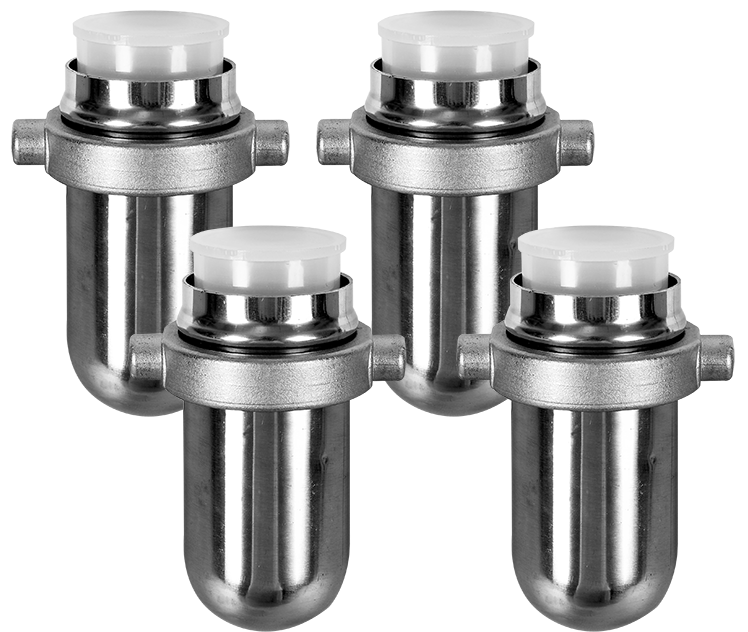

BC.A09 | Hanging basket 100ml x 4 | 5000 | 4600 | ||
BC.A10 | Hanging basket 50ml x 4 | 5000 | 4980 | ||
BC.A11 | Hanging basket 50ml x 8 | 4000 | 3040 | ||
BC.A16 | 4 mic-plates x 2 x 96 / 2 deep hole plates x 2 x 96 | 3500 | 2190 | ||
BC.A17 | Angle rotor 15ml x 12 | 6000 | 5150 | ||
BC.A21 | Hanging basket 10/15ml × 24 holes | 4000 | 3040 | ||
BC.A22 | Hanging basket 10/15ml × 32 holes | 4000 | 3040 | ||
BC.A23 | Hanging basket 5ml × 48 holes | 4000 | 3040 | ||
BC.A24 | Hanging basket 5ml × 64 holes | 4000 | 3040 | ||
BC.A25 | Hanging basket 3/5/7ml × 72 holes | 4000 | 3040 | ||
BC.A26 | Adapter 3ml×48 | for BC.A23 | |||
BC.A27 | Adapter 3ml×64 | for BC.A24 | |||

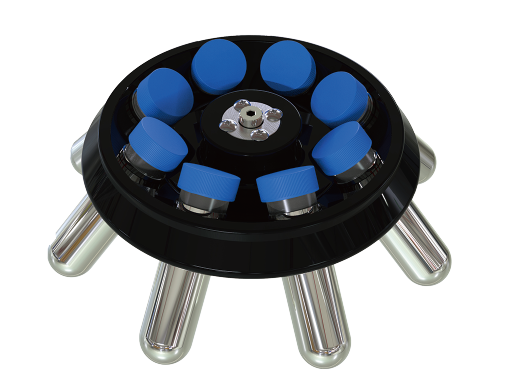

BC.A40 | Angle swivel with cover 50ml×8 | 6000 | 5150 | ||
BC.A41 | Adapter 5ml×12 | for BC.A17 | |||
BC.A42 | Adapter 5ml×24 | for BC.A21 | |||
BC.A43 | Adapter 5ml×36 | for BC.A22 | |||
BC.A44 | Adapter 8/10ml×12 | for BC.A17 | |||
BC.A45 | Adapter 8/10ml×24 | for BC.A21 | |||
BC.A46 | Adapter 8/10ml×32 | for BC.A22 | |||
BC.A47 | Adapter 15ml×8 | for BC.A40 |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
Rotor | Hanging basket | Hanging basket | Hanging basket | 4 mic-plates x 2 x 96 | Angle rotor | Hanging basket |
100ml x 4 | 50ml x 4 | 50ml x 8 | 2 deep hole plates x 2 x 96 | 15ml x 12 | 10/15ml × 24 holes | |
BC.A08 | BC.A09 | BC.A10 | BC.A11 | BC.A16 | BC.A17 | BC.A21 |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
Hanging basket | Hanging basket | Hanging basket | Hanging basket | Adapter | Adapter | Angle swivel with cover |
10/15ml × 32 holes | 5ml × 48 holes | 5ml × 64 holes | 3/5/7ml × 72 holes | 3ml×48 | 3ml×64 | 50ml×8 |
BC.A22 | BC.A23 | BC.A24 | BC.A25 | BC.A26 | BC.A27 | BC.A40 |
![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() |
Adapter | Adapter | Adapter | Adapter | Adapter | Adapter | Adapter |
5ml×12 | 5ml×24 | 5ml×36 | 8/10ml×12 | 8/10ml×24 | 8/10ml×32 | 15ml×8 |
BC.A41 | BC.A42 | BC.A43 | BC.A44 | BC.A45 | BC.A46 | BC.A47 |
