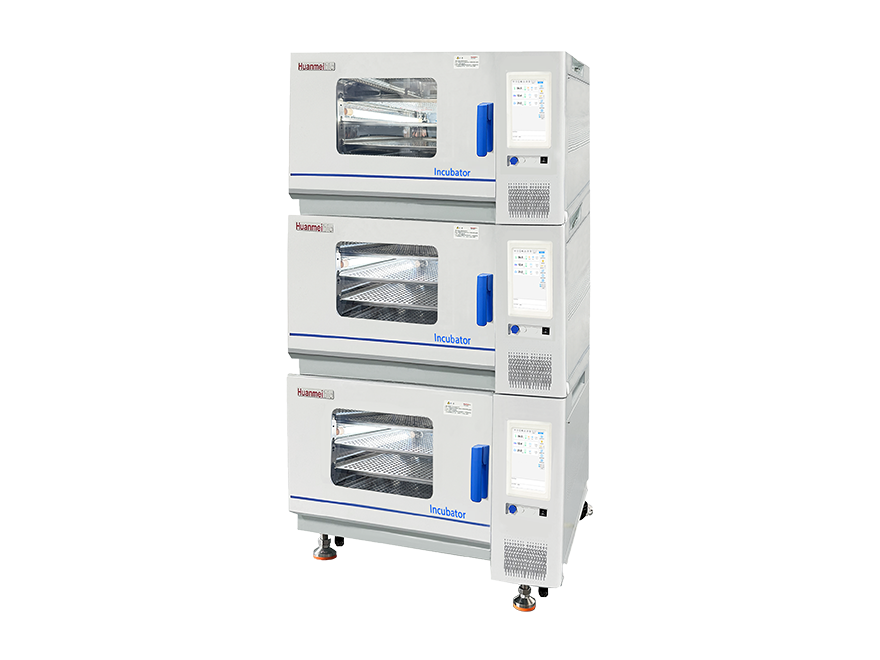

Stackable CO2/Tri-gas incubator
Product Categories： CO2/Tri-gas incubator
This series of products is widely used in cell culture, antibody drug research and development, and the cultivation of microorganisms such as bacteria and fungi. It has a wide range of applications in various pharmaceutical companies, environmental protection, medical and health care, and scientific research in universities.
Tel：+86-512-58666681
Can be stacked to 3 layers, saving indoor space.
Adopting a network topology based intelligent PID.
Timing to start or stop or UV timing function.
More 50% energy-saving than traditional unit.
Three-level users management, complies with 21 CFR-part11. Meets GMP requirements.
The chamber is made of SUS304 stainless steel for corrosion preven tion.
The chamber is waterproof, rounded design for easy cleaning.
Equiped with two lights and ultraviolet lights on two sides.
Data export by the USB port.
Call recovery function after the power failure recovery.
Continuously record data for 5 years (stored per minute).
The screen can display temperature, other curve functions.
Overtemperature alarm.
10 inch touch screen display, all parameters display are clear at a glance.
Stackable carbon dioxide incubator
Model | Layers | Chamber | Net weight | Dimensions (length x depth x height)mm | Partition |
CH200E | 1 unit | 200L | 161Kg | 977×（796+handle 59）×680 | Single layer: standard number of partions/Maximum partions available 4/9 |
CH200BE | 2 unit | 200L | 322Kg | 977×（796+handle 59）×1280 | |
CH200CE | 3 unit | 200L | 486 Kg | 977×（796+handle 59）×1880 | |
CH250E | 1 unit | 250L | 181 Kg | 977×（796+handle 59）×800 | Single layer: standard number of partions/Maximum partions available 4/12 |
CH250BE | 2 unit | 250L | 362 Kg | 977×（796+handle 59）×1520 | |
CH250CE | 3 unit | 250L | 543 Kg | 977×（796+handle 59）×2240 |
Stackable Tri-gas incubator
Model | Layers | Chamber | Net weight | Dimensions (length x depth x height)mm | Partition |
TH200E | 1 unit | 200L | 161Kg | 977×（796+handle 59）×680 | Single layer: standard number of partions/Maximum partions available 4/9 |
TH200BE | 2 unit | 200L | 322Kg | 977×（796+handle 59）×1280 | |
TH200CE | 3 unit | 200L | 486 Kg | 977×（796+handle 59）×1880 | |
TH250E | 1 unit | 250L | 181 Kg | 977×（796+handle 59）×800 | Single layer: standard number of partions/Maximum partions available 4/12 |
TH250BE | 2 unit | 250L | 362 Kg | 977×（796+handle 59）×1520 | |
TH250CE | 3 unit | 250L | 543 Kg | 977×（796+handle 59）×2240 |
Product Name | Stackable carbon dioxide incubator
| Stackable Tri-gas incubator
| |
Stacking layers | 1 layer /2 layers / 3 layers | ||
Cavity cleanlevel | ISO5 level (Class100) | ||
Temp. range | 5 ℃ above ambient temperature (minimum 0 ℃) -60 ℃ | ||
Temp. resolution | 0.1℃ | ||
Temp. fluctuation | ±0.1℃ | ||
Temp. uniformity | ≤± 0.25 ℃ (@ 37 ℃) | ||
Temp. recovery after 30S open-door | ≤5min (@37℃) | ||
Humidity range | 20%~95%rH(Optional） | ||
Humidity setting | 0.1% rH(Optional） | ||
Humidity fluctuation | ±1.5% rH (Optional） | ||
Humidity recovery | ＜10min（@80%37℃）(Optional） | ||
Humidity sensor | Capacitive(Optional） | ||
C02 range | 0~20% | ||
C02 setting | 0.10% | ||
C02 fluctuation | ±0.1%@5% | ||
C02 recovery | ≤5min (@5%37℃) | ||
C02 sensor | IR (Infrared Import) | ||
02 range | / | 1~90% | |
02 setting | / | 0.10% | |
02 fluctuation | / | ±0.1%(@5%) | |
02 recovery | / | ≤5min (@25%37℃） | |
Sterilization | UV lights on both sides | ||
Lighting | LED fluorescent lights on both sides | ||
Display mode | 10 inch touch screen | ||
Programing segments count | 20 paragraphs | ||
Door open | Right side open | ||
Curve display type | Temperature curve, humidity curve, CO2 concentration curve, O2 concentration curve | ||
Data storage time | Recording every minute | ||
Storage time interval | Adjustable (minimum 1 minute) | ||
Data storage content | Running time, temperature parameters, operating status and other operating parameters, and the USB flash drive can be exported | ||
Noise level | ≤55dB | ||
Internal dim.(W * D * H) | 560*696*522mm（200Lmodel）/560*696*642mm（250Lmodel） | ||
Partition working size | 492*508mm | ||
Partition load-bearing capacity | 15kg | ||
Partition layer height | 45mm | ||
Maximum power | 900w | ||
Internal waterproof flushing | yes | ||
Timer function | UV reservation, timing, and reminder functions for reminders | ||
Audit tracking function | log records, audit trails, and three-level permission functions | ||
Cavity volume | 200L/250L | ||
Power Supply | AC220V ±10%, 50/60Hz | ||
Model | Name | Remarks |
S.A61 | White light illumination accessory | Suitable for all models |
S.A02 | WIFI remote controller accessories | Suitable for all models |
S.A37 | Sunlight&UV lamp group | Suitable for all models |
S.A38 | Fluorescent lamp module | Suitable for all models |
S.A39 | UV lamp module | Suitable for all models |
| S.A40 | Humidification bucket | Suitable for all models |
| S.A68 | Humidification add water module | Suitable for all models |
S.A70 | Bracket 280 | Suitable for all models |
S.A72 | Light avoidance module | Suitable for all models |
S.A48 | Embedded printer | Suitable for all models |
S.A49 | 8-channel SMS/phone alarm | Suitable for all models |
| S.A50 | CO2、O2、N2 pressure reducer | Suitable for all models |
| S.A53 | Intake filter 0.25um | Suitable for all models |
S.A54 | Electric door lock | Suitable for all models |
| S.A60 | Humidification module | Suitable for all models |
| S.A87 | Computer monitoring software | Suitable for all models |
S.A88 | 3Q verification | Suitable for all models |
S.A100 | Human body sensing module | Suitable for stackable temperature control models |
| CI.A01 | a partition | Suitable for all models |
