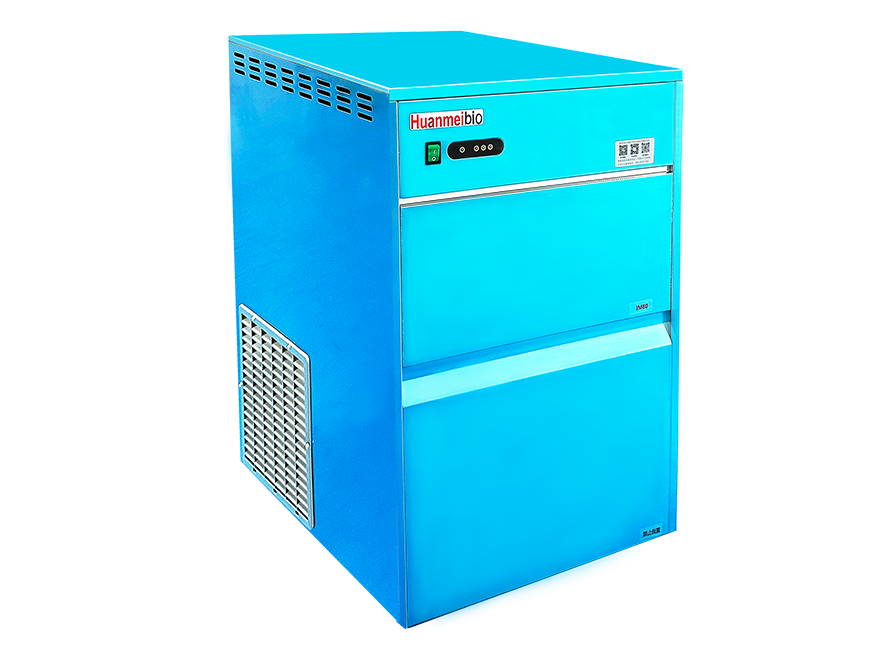

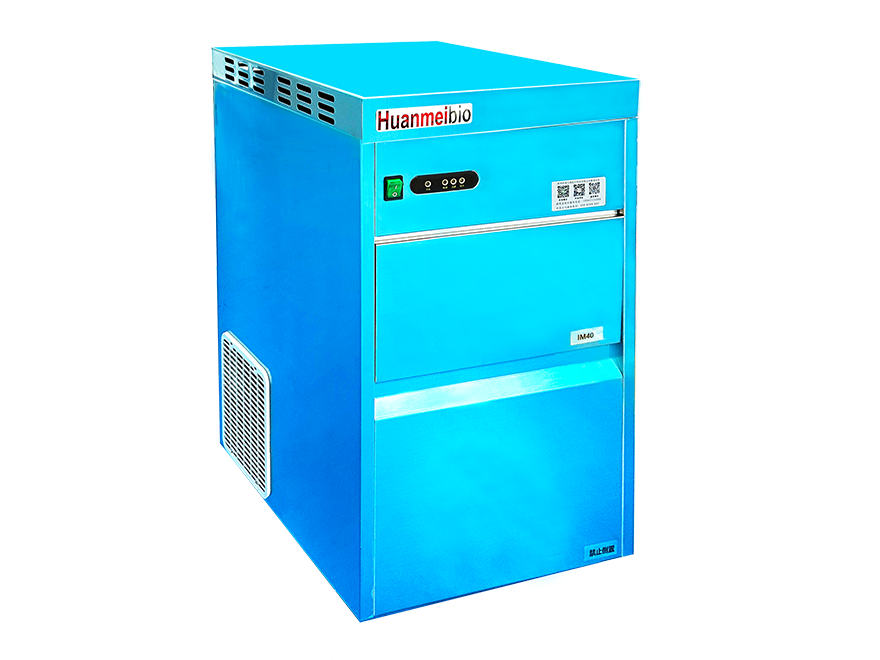

Bullet head ice maker
Product Categories： Ice maker
Bullet head ice maker is widely used in hospitals, research institutions, schools, governments, enterprises, supermarkets and other units, for the preservation of biological samples, food preservation, fishing and refrigeration, food processing and other fields.
Tel：+86-512-58666681
Regular bullet head ice is suitable for samples stored for a long time.
The compressor adopts energy-saving control, low noise, and long service life.
SUS304 stainless steel shell, durable and corrosion-resistant, compact design takes up no space.
High quality insulation layer, energy-saving insulation.
The inner cavity and piping are made of food grade plastic, ensuring safe use.
Stop as malfunctions. Power recovery function.
Optional water purifier accessories, pure ice making and anti fouling.
Optional automatic drain accessories are available to bid farewell to the hassle of no floor drain and achieve high-level drainage.
Model | IM20B | IM25B | IM25BP | IM50B | IM50BP | IM100B | IM120B |
Ice capacity (kg/24h) | 20kg | 25kg | 25kg | 50kg | 50kg | 100kg | 120kg |
Ice storage (kg) | 5kg | 7kg | 12kg | 13kg | 25kg | 55kg | 55kg |
Ice shaped | Particle bullet head | ||||||
Inner material | Food grade plastics | ||||||
Cooling type | Air-cooled | ||||||
Compressor | Energy-saving | ||||||
Box shell | Particle bullet head | ||||||
External dim.(W*D*H) | 330 * 503 * 607 | 400 * 515 * 810 | 400 * 515 * 810 | 550 * 610 * 870 | 500 * 610 * 890 | 680 * 610 * 1050 | 680 * 610 * 1050 |
Net weight (kg) | 26kg | 31kg | 31kg | 50kg | 50kg | 75kg | 75kg |
Max. power | 200W | 240W | 240W | 380W | 380W | 690W | 730W |
Power supply | AC220V ±10%, 50/60Hz | ||||||
Ambient temp. | 5 ～ 40℃ | ||||||
Model | Name | Remarks |
IM.A01 | Water purifier | for pipeline inlet water purification |
IM.A02 | Automatic drain | for floor drains and high head, with a head of 4.0 meters, a flow rate of 4800L/h, and a power of 115w |
IM.A03 | Water purifier 5-stage | Used for water purifiers |
