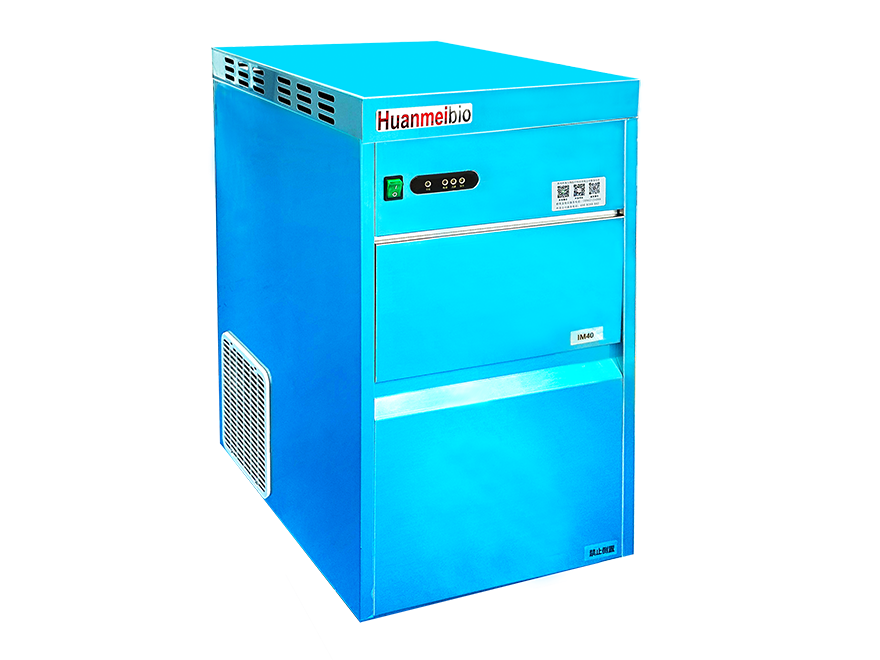

Block shaped ice maker
Product Categories： Ice maker
Block shaped ice maker is widely used in hospitals, research institutions, schools, governments, enterprises, supermarkets and other units, for the preservation of biological samples, food preservation, fishing and refrigeration, food processing and other fields.
Tel：+86-512-58666681
Regular block head ice is suitable for samples stored for a long time.
The compressor adopts energy-saving control, low noise, and long service life.
SUS304 stainless steel shell, durable and corrosion-resistant, compact design takes up no space.
High quality insulation layer, energy-saving insulation.
The inner cavity and piping are made of food grade plastic, ensuring safe use.
Stop as malfunctions. Power recovery function.
Optional water purifier accessories, pure ice making and anti fouling.
Optional automatic drain accessories are available to bid farewell to the hassle of no floor drain and achieve high-level drainage. drain and achieve high-level drainage.
Model | IM30L | IM40L | IM50L | IM60L | IM80L | IM90L | IM120L | IM150L |
Ice capacity (kg/24h) | 30kg | 40kg | 50kg | 60kg | 80kg | 90kg | 120kg | 150kg |
Ice storage (kg) | 10kg | 10kg | 15kg | 30kg | 30kg | 60kg | 60kg | 60kg |
Ice grid number | 32 pieces | 40 pieces | 45 pieces | 55 pieces | 72 pieces | 90 pieces | 108 pieces | 126 pieces |
Inner material | Food grade plastics | |||||||
Cooling type | Air-cooled | |||||||
Compressor | Energy-saving | |||||||
Box shell | SUS304 stainless steel | |||||||
External dim.(W*D*H) | 375 * 515 * 615 | 375 * 515 * 615 | 398 * 545 * 720 | 500 * 615 * 885 | 500 * 615 * 885 | 680 * 615 * 955 | 680 * 615 * 955 | 680 * 615 * 955 |
Net weight (kg) | 20kg | 22kg | 27kg | 41kg | 45kg | 49kg | 51kg | 54kg |
Max. power | 150W | 190W | 320W | 320W | 420W | 460W | 490W | 520W |
Power supply | AC220V ±10%, 50/60Hz | |||||||
Ambient temp. | 5 ～ 40℃ | |||||||
Model | Name | Remarks |
IM.A01 | Water purifier | for pipeline inlet water purification |
IM.A02 | Automatic drain | for floor drains and high head, with a head of 4.0 meters, a flow rate of 4800L/h, and a power of 115w |
IM.A03 | Water purifier 5-stage | Used for water purifiers |
